Connecting Access Control Dahua DHI-ASI1212A to the Door Lock Hikvision DS-K4H250S



A.      Wiring the door locl using power from Dahua DHI ASI1212A

When using this scheme the door lock get its power from access control so there is no need to use extra power supply to power the door lock. An adaptor that powering Dahua access control is enough for powering both access control and the door lock.

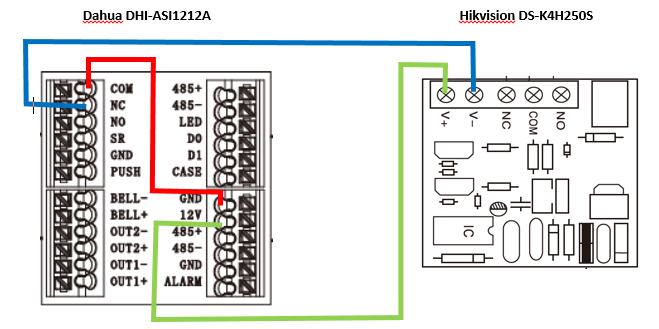

  1. 1.       The Wiring Diagram

Please wire the Access Control and the door lock similar to below diagram.

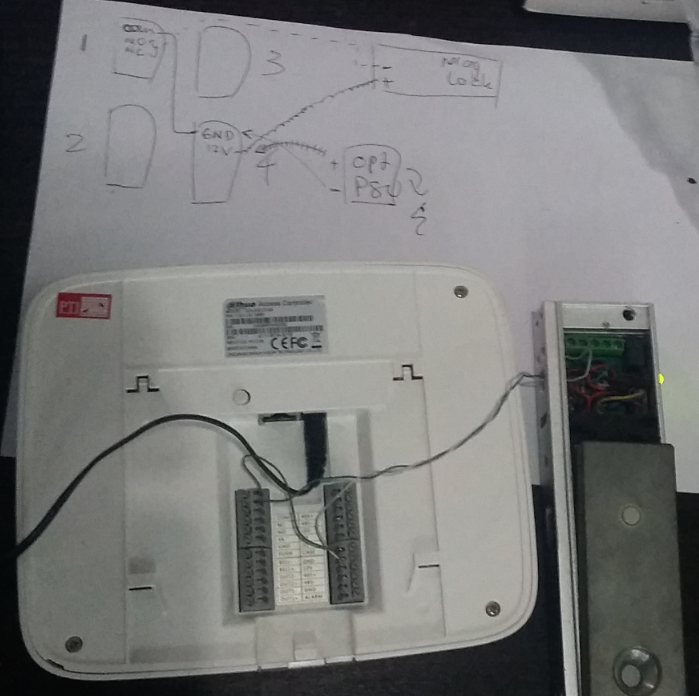

The Complete Photo





1.       Register the fingerprint

Please refer to Fingerprint Access Control Integration Host User’s Manual chapter 4.2.1 Add User



A.      Wiring the door lock using external power supply

This scheme is used when the adaptor for Dahua access control is not available, but we do have an external power supply that able to produce output power 12V 1A.

Both the door lock and the access control get its power from the external supply. An external power supply that powering Dahua access control is enough for powering both access control and the door lock.

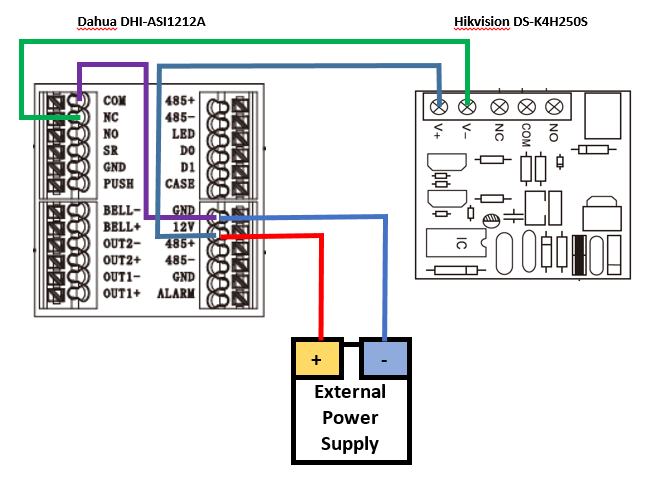

  • 1.       The wiring diagram

Please wire the Access Control and the door lock similar to below diagram





  • 1  Register the fingerprint

Please refer to Fingerprint Access Control Integration Host User’s Manual chapter 4.2.1 Add User
