Cara Configuration Email Di DVR Hikvision
Bila menginginkan DVR send out e-mails ketika ada kejadian/events yg ter detect atau exceptions yang triggered, anda harus setup the e-mail settings.
To setup e-mail settings:

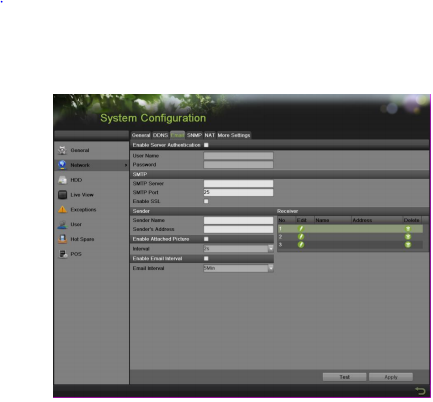

1. Enter the Email Configuration menu by going to Menu > System Configuration > Network.
2. Select the Email tab.
pada tab ini, enter all pertinent email information, termasuk :
Enable Server Authentication: Enable if email server requires authentication. Enabling Server
Authenticating will enable the User Name and Password fields.
User Name: User name to use for server authentication. *kita rekomendasi menggunakan Gmail.
Password: isi Password yg digunakan untuk server authentication.
SMTP Server: Address for SMTP server.
SMTP Port: Port for SMTP server.
Enable SSL: Enable Secure Sockets Layer (SSL) for out-going e-mail.
Sender Name: The sender name to use when an e-mail is sent out from the DVR. *isi nama Pengirim*
Sender’s Address: The sender’s address to use when an e-mail is sent out from the DVR. *isi alamat email Pengirim*
Enable Attached Picture: Enabling will attach a small picture segment (Interval can be set below the Enable Attached Picture checkbox) to the out-going e-mail. *mengaktifkan fitur dg penambahan gambar screenshoot camera*
Receiver: Click to edit Receiver Settings. *Masukkan nama penerima dan alamat email* . *Click Apply untuk menyimpan settingan*. Alamat e-mail akan di add ke Recipients list.
Enable Email Interval: Enable if need sending email between time intervals. The time interval can be set 1, 3, 5,10 minutes * Interval Email di aktifkan bila di inginkan time interval 1,3,5,10 menit
4. You may now test the e-mail settings by clicking the Test button. *anda dapat test koneksi email*
5. Select the Apply button to save the e-mail settings and select to return to the previous menu. Selecting without clicking Save will quit out of the menu without saving settings. *Pilih Apply untuk simpan setting email, dan pilih return untuk menu sebelumnya
Langkah selanjutnya
Anda Harus login ke akun Gmail dan ikut langkah berikut:
1. Click pada account icon pada sudut kanan atas

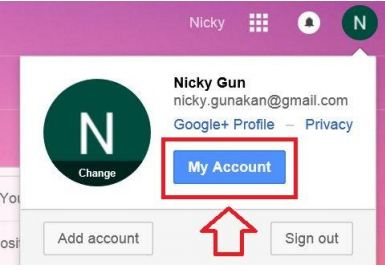

2. Klik My Account

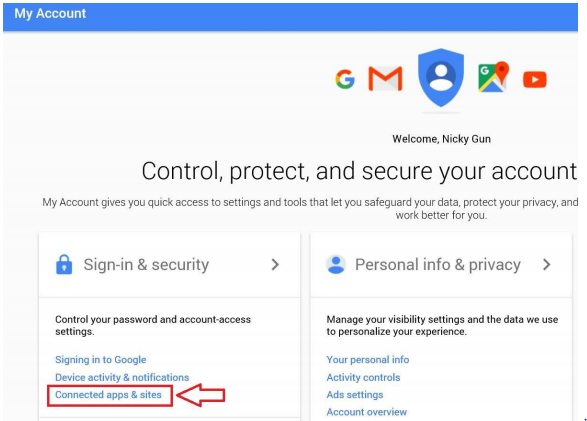

3. Under Sign-in & Security, Click on Connected apps and Sites

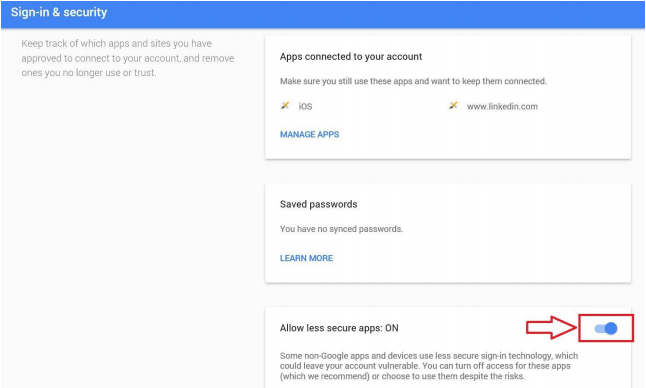

4. Please enable Less Secure apps
